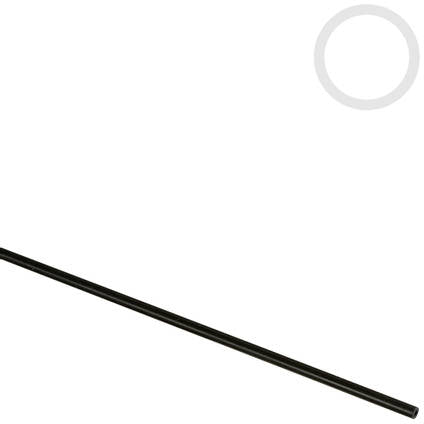

2mm (1mm) Pultruded Carbon Fibre Tube

Small scale pultruded carbon fibre tube measuring just 2mm OD and 1mm ID. This precision made carbon fibre tube is suited to ultra-lightweight applications in radio controlled models, electronics and precision engineering. The tube is manufactured to tight tolerances using high strength carbon fibre and an epoxy resin matrix for maximum performance.

Sold in 1m and 2m lengths.

Pultruded carbon fibre round tube manufactured from 100% unidirectional carbon fibre.

The tube has an outer diameter (OD) of 2mm and a wall thickness of 0.5mm leaving an inner diameter (ID) of 1mm.

Typical Uses

This ultra-light 0.5mm thick, tiny 2mm OD tube is ideally suited for use in radio controlled (RC) aircraft, helicopters, U.A.V's and other models but would be equally suited to other precision applications like robotics and automation.

Pultrusion Explained

Pultruded tubes are the most commonly used type of carbon fibre tube. Pultrusion is a method of manufacturing continuous lengths of fibre reinforced section (in this case tube) by pulling continuous strands of carbon fibre through resin and a former before curing the resin all in one process.

Pultruded tubes feature 100% longitudinal fibre orientation which gives them excellent strength along their length but does make them vulnerable to crushing forces. For applications where none-uniform forces are likely to be encountered, including crushing forces, roll wrapped carbon fibre tubes  should be considered as an alternative.

The pultrusion process allows incredible tiny diameter tubes to be produced (as small as 2mm OD).
